Four-way shuttle

Parameter:

・Supports dense rack layout, reduces aisle occupation compared with traditional racks, improves warehouse space utilization by 30%-50%, especially suitable for high-cost storage sites like urban core areas.
・ Four-way movement without rail change, combined with multi-vehicle collaborative scheduling, a single vehicle can complete 80-120 inbound/outbound operations per hour, and efficiency can be flexibly expanded during promotions or peak hours.
・ Wide temperature design from -25℃ to 45℃, compatible with normal temperature, cold chain, high temperature and other working conditions, and adapts to the cleanliness and compliance requirements of pharmaceutical, food and other industries.
・Automated operation reduces labor demand by more than 60%, lithium iron phosphate battery cycle life exceeds 2000 times, and later maintenance cost is only 1/3 of traditional equipment.
・ Can seamlessly connect with WMS, WCS and other warehouse management systems, support collaborative operation with AGV, stacker and other equipment, and meet the needs of warehouse upgrading of different scales.


Features:

  • Four-way movement

  • Strong safety

  • Modular structure

Product Advantages

  • 01

    flexible & efficient

  • 02

    high space utilization

  • 03

    labor-saving

  • 04

    Strong scalability

  • 05

    High-density storage

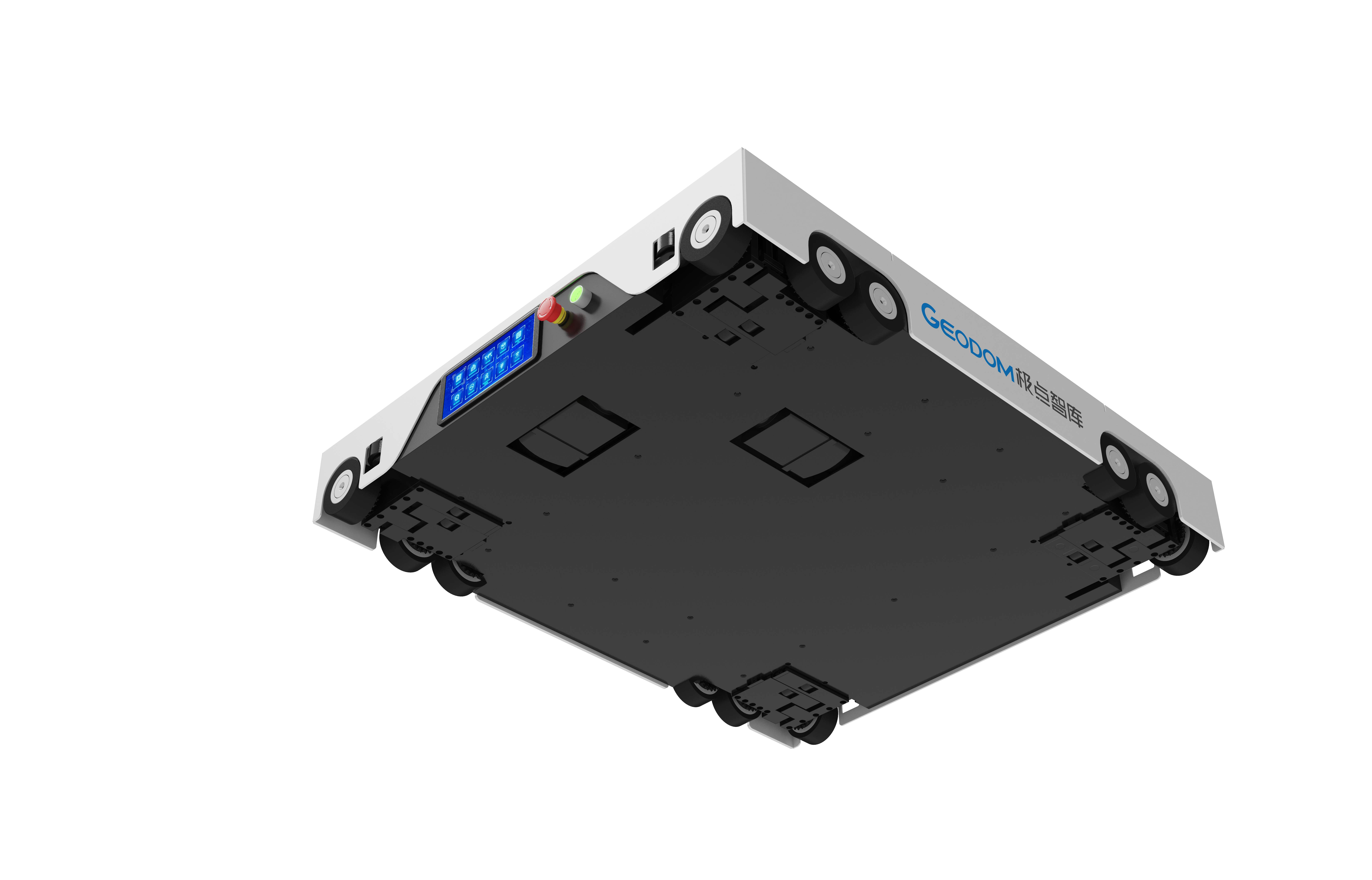

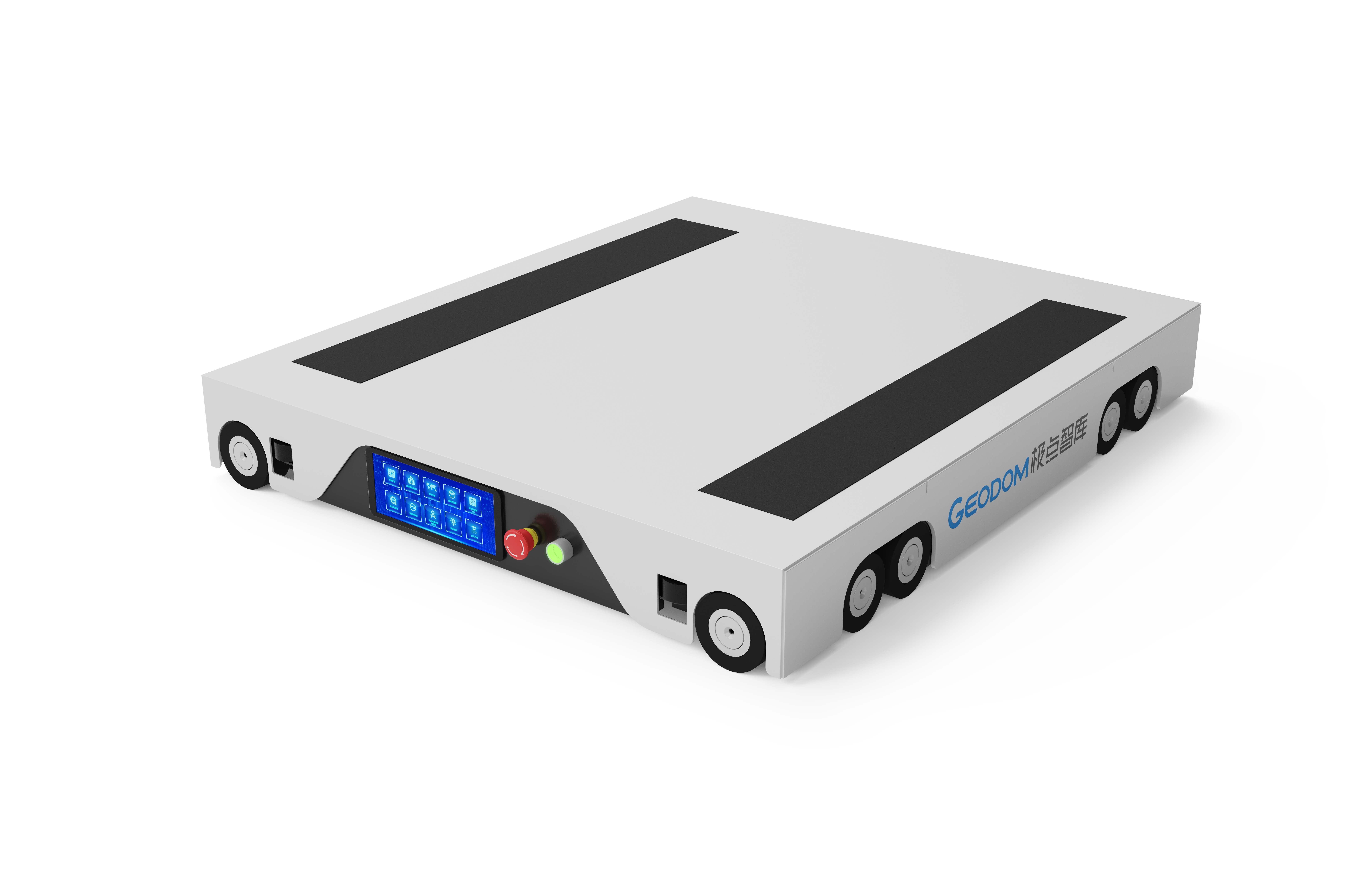

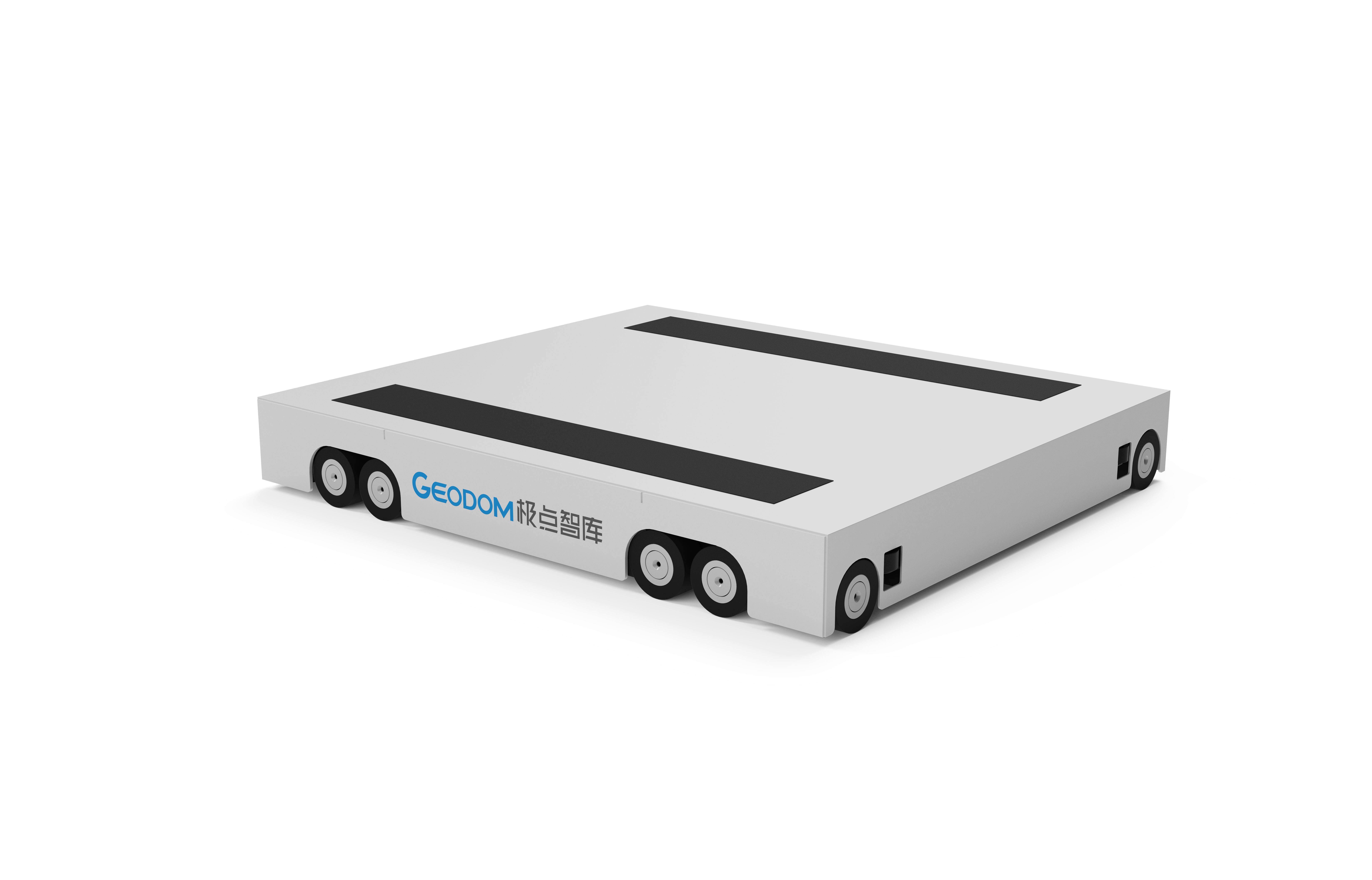

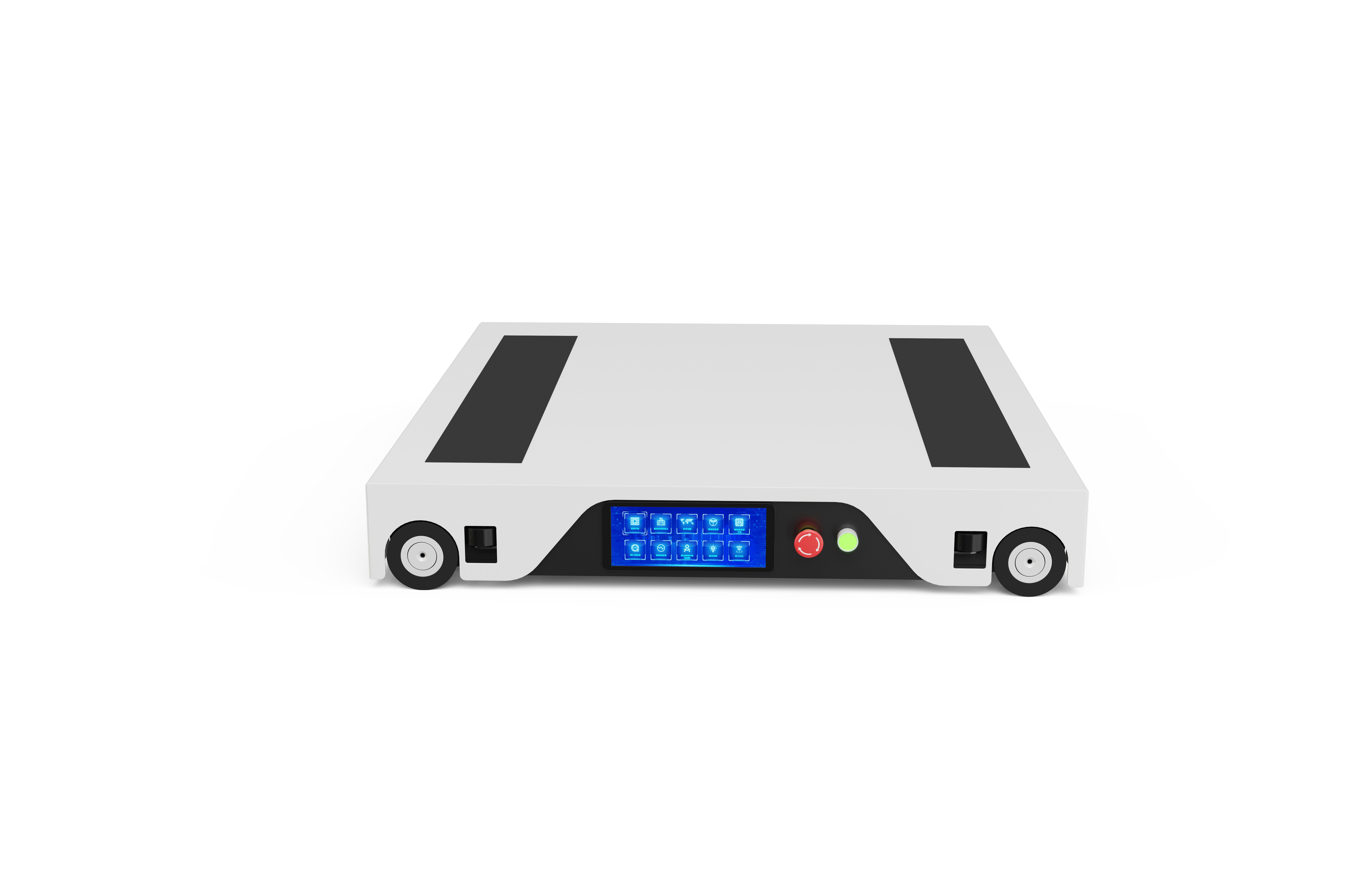

Product Appearance

Product Specifications

Four-way movement, flexible & efficient

Dense storage, high space utilization

Automated operation, labor-saving

Strong scalability, wide application

Product TypePallet type
Rated Load1200–2000 kg (customizable)
Dimensions (L×W×H)L1192 × W972 × H125 mm
Dead Weight275 kg
Positioning ModeRFID + magnetic induction + odometer
Positioning Accuracy±1 mm
Speed (full/empty)1.6 / 1.2 m/s
Max Acceleration2 m/s²
Direction Change Time2.5 s
Lifting Time1.5 s
Operating Temperature-25 ~ 45 ℃
Working Hours (full charge)8–10 h
Battery51.2V 40Ah
Battery TypeLiFePO4
CertificationCE (EU), UL (North America)
Drive ModeServo drive

Frequently Asked Questions

  • Q

    What scenarios can the four-way shuttle be used in?

    A
    Suitable for pallet dense storage, cold chain warehouses, high-level racks, AS/RS, etc.
  • Q

    What is the difference between a four-way shuttle and a normal shuttle?

    A
    Four-way shuttles can move forward, backward, left, and right, and work across lanes; normal shuttles only run in one direction.
  • Q

    Does the four-way shuttle support multi-vehicle operation?

    A
    Yes, it supports multi-vehicle collaboration, path planning, and automatic obstacle avoidance via the dispatching system.
  • Q

    How does the four-way shuttle charge? Does it support 24/7 operation?

    A
    It supports online automatic charging. It goes to the charging area automatically when power is low, enabling 24-hour operation.
